Monocular Visual-Inertial Depth Estimation

Abstract

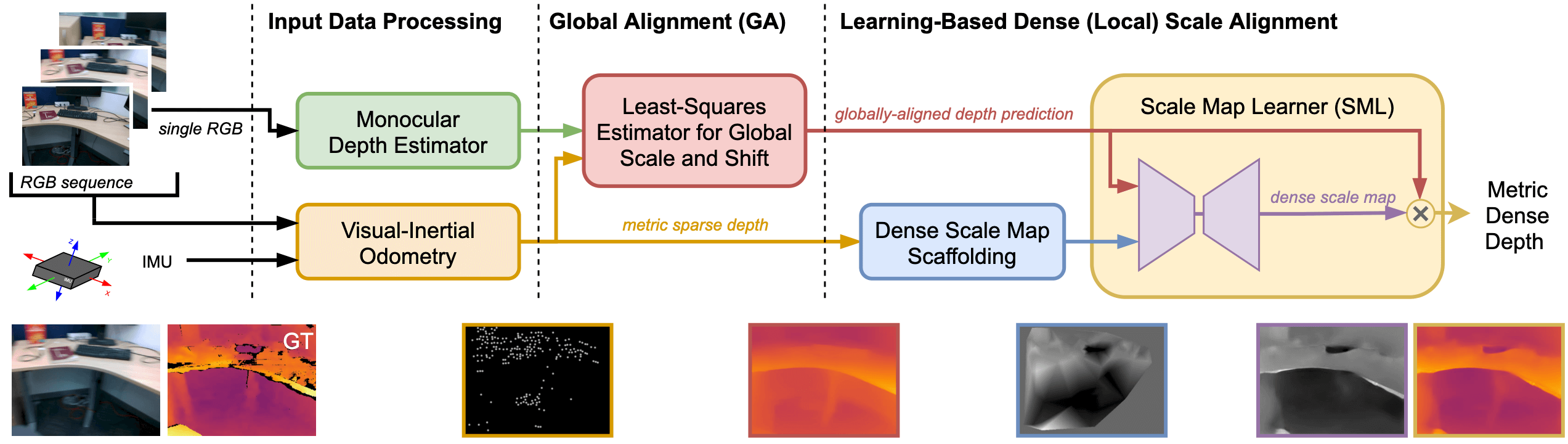

We present a visual-inertial depth estimation pipeline that integrates monocular depth estimation and visual-inertial odometry to produce dense depth estimates with metric scale. Our approach performs global scale and shift alignment against sparse metric depth, followed by learning-based dense alignment. We evaluate on the TartanAir and VOID datasets, observing up to 30% reduction in inverse RMSE with dense scale alignment relative to performing just global alignment alone. Our approach is especially competitive at low density; with just 150 sparse metric depth points, our dense-to-dense depth alignment method achieves over 50% lower iRMSE over sparse-to-dense depth completion by KBNet, the state of the art on VOID. We demonstrate successful zero-shot transfer from synthetic TartanAir to real-world VOID data.

Resources

arXiv: 2303.12134

Video

Citation

@inproceedings{wofk2023videpth,
  title     = {Monocular Visual-Inertial Depth Estimation},
  author    = {Wofk, Diana and Ranftl, Ren{\'{e}} and M{\"{u}}ller, Matthias and Koltun, Vladlen},
  booktitle = {IEEE International Conference on Robotics and Automation (ICRA)},
  year      = {2023}
}
